Interior Fuse Box

Driver's Side Interior Fuse Box

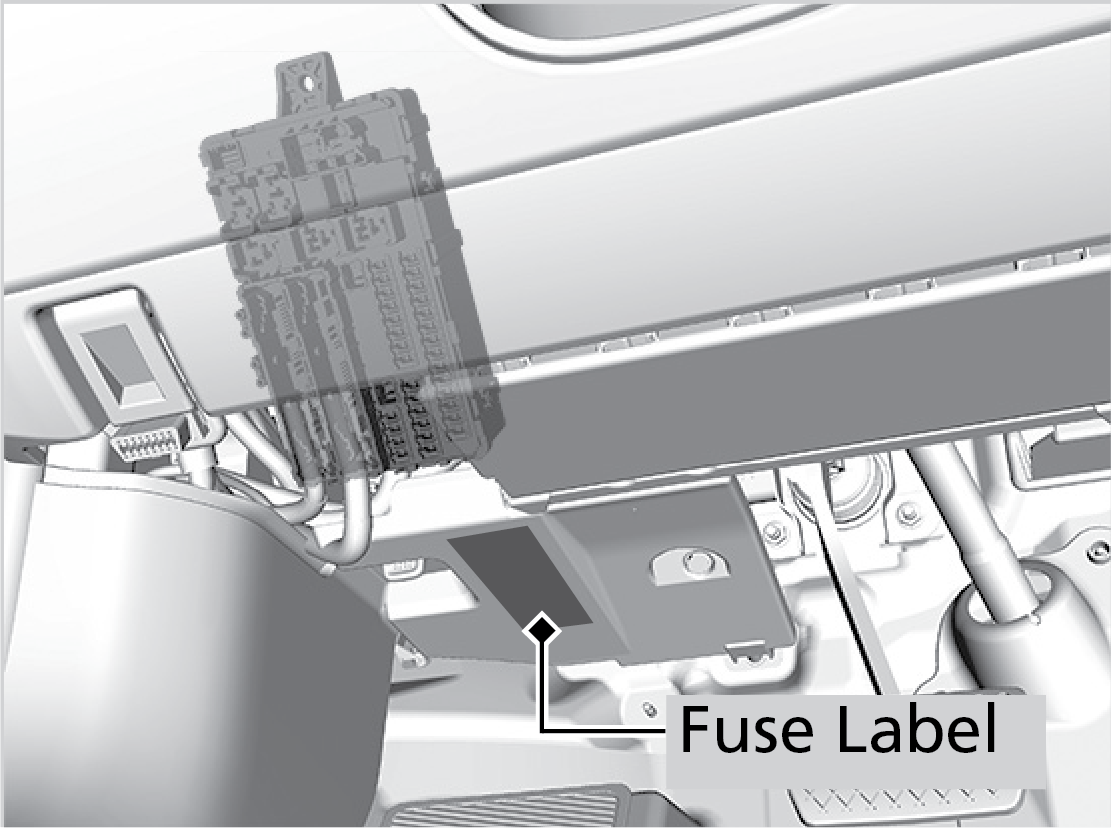

There are two fuse boxes in the driver's side. Both are located under the dashboard. Fuse locations are shown on the label on the under panel.

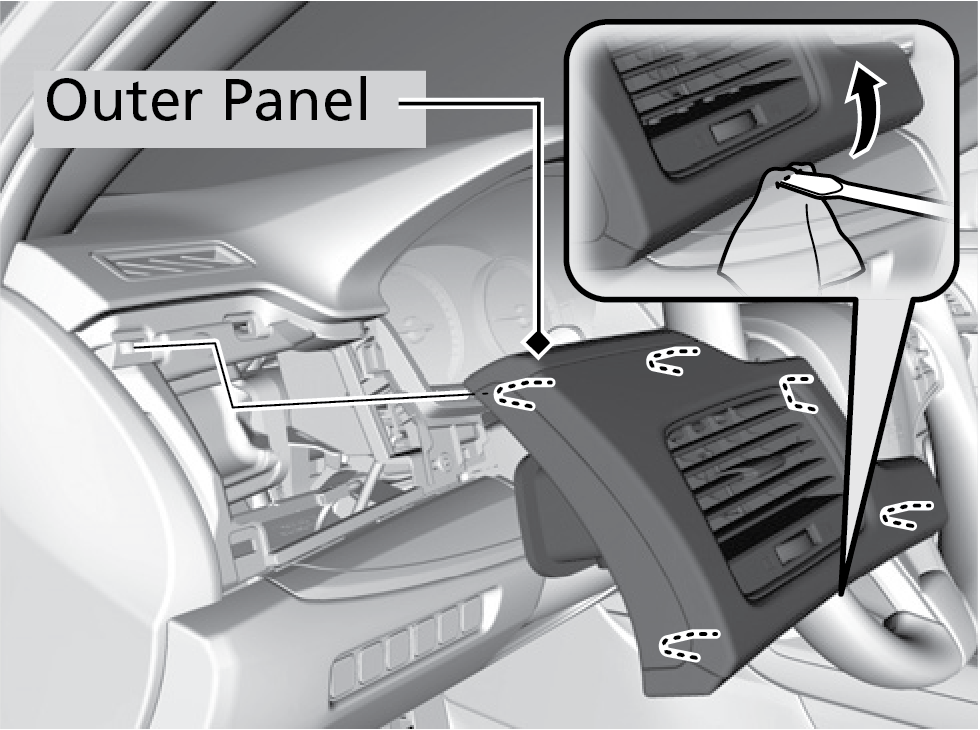

  1. Pry on the lower edge of the panel using a flat tip screwdriver.

    Wrap the flat tip screwdriver with a cloth to prevent scratches.

  2. Pull the outer panel towards you, then remove it.

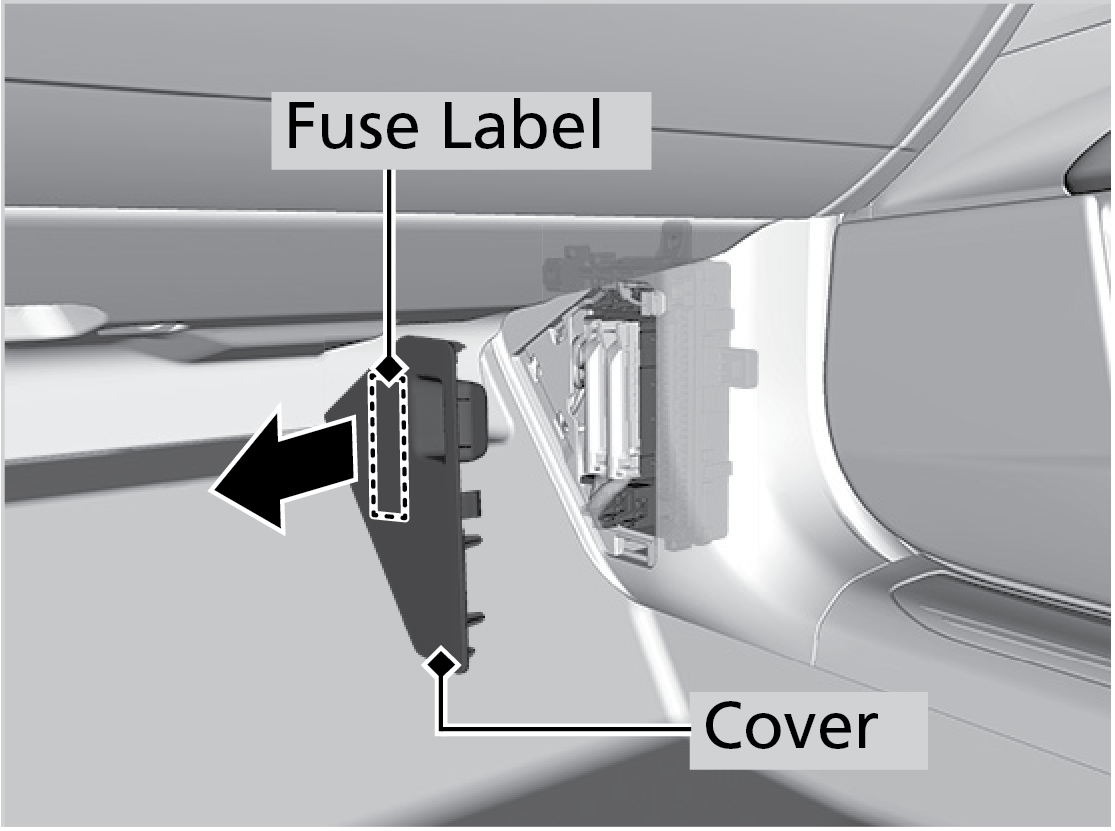

Passenger's Side Interior Fuse Box

Located on the lower side panel. Take off the cover to open.
